AdEPar, ADVANCED EDUCATIONAL PARALLEL DSP SYSTEM, 1994-1995

This project was realized by the collaboration of TUBITAK, The Scientific and Technical Research Council of Turkey, and

Electronics Engineering Dept. of Uludag University and  exhibited at the ScienceFair at TUYAP Center in Istanbul, June, 1995

The System is based on TMS320C25 DSP processors. The mainboard has 2 processor running at 40MHz .

MainBoard is designed by TUBITAK and printed by TELETAS.

The high level software for both simulation and real-time operation of the board is written by Electronics Eng. Dept undergrad students.

Ali Akman

 Windows GUI

Erol Benoz

 DSP Block Algorithms, Windows GUI

Fatih Sahin

 Windows GUI, Code Generation

Fethullah Gulluce

 Overall System Integration, Code Generation

Omur Demir

 Windows GUI, Code Generation

Ozgur

 Parallel Debugger

Sadik Kuskonmaz

 DSP Block Algorithms, Windows GUI

Selcuk Mitmit

 DSP Block Algorithms, Windows GUI

Sukru Colak

 Graphs, Task Scheduler Algorithm

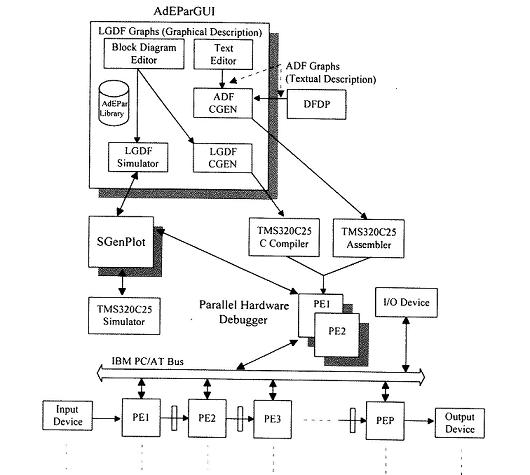

The software is written in C++ and is able to

Compile LGDFs (Large grain data flow graphs)

Generate C code for TMS320C25 compiler

Schedule independent LGDFs onto pipelined-processors

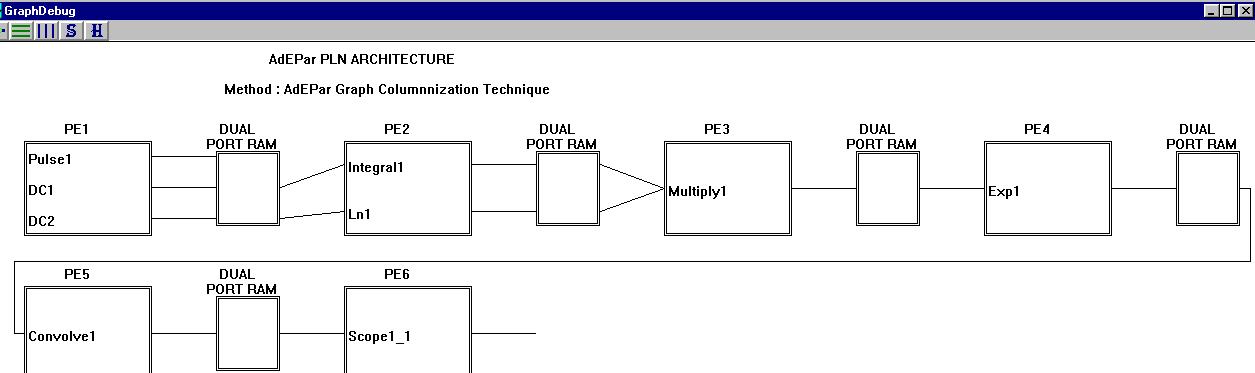

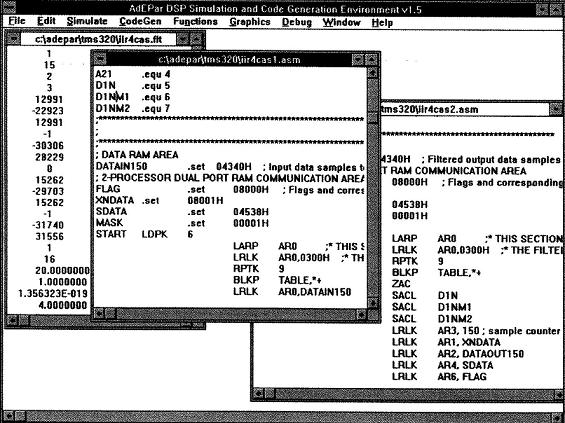

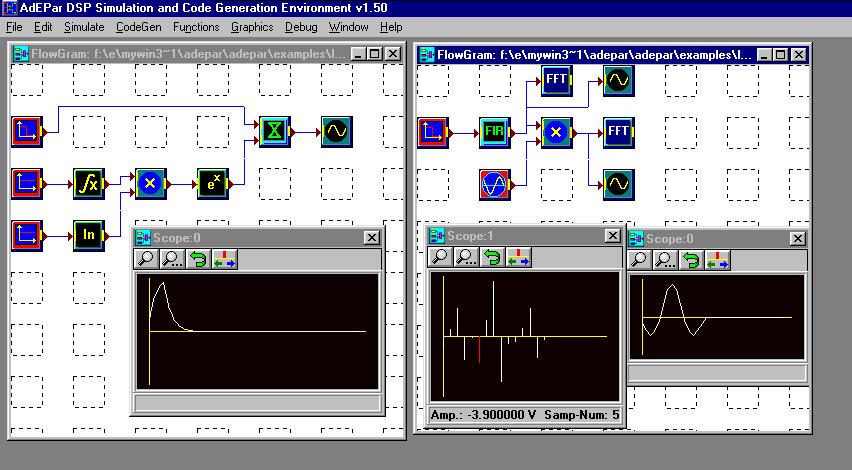

Some SnapShots
